Detail produk:
|
|
Tempat asal: | Cina |
---|---|
Nama merek: | Tiptop |
Sertifikasi: | ISO9001 |
Nomor model: | 6 * 1.0 |
Syarat-syarat pembayaran & pengiriman:
|
|
Kuantitas min Order: | 1 gulungan |
Harga: | USD/EURO/RMB |
Kemasan rincian: | gulungan kayu + kasus kayu |
Waktu pengiriman: | SATU MINGGU |
Syarat-syarat pembayaran: | L / C, T / T |
Informasi Detail |
|||
Bahan: | 304, 316, 316L, 317L, 321, 347, 904L, 6 Mo, Monel 400, Nikel 200, Inconel 600, Inconel 625, Inconel | Bahan sarung: | PVC, TCR PVC, FR PVC, TPU HFFR, HFFR PE, HDPE, MDPE, LDPE, XLPE |
---|---|---|---|
Nama Produk: | Tubing melingkar multi-core | standar: | ASTM A269 |
Cahaya Tinggi: | ASTM A269 Welded Multi Core Tube,TP304L Multi Core Tube,TCR PVC Multi Core Tube |
Deskripsi Produk

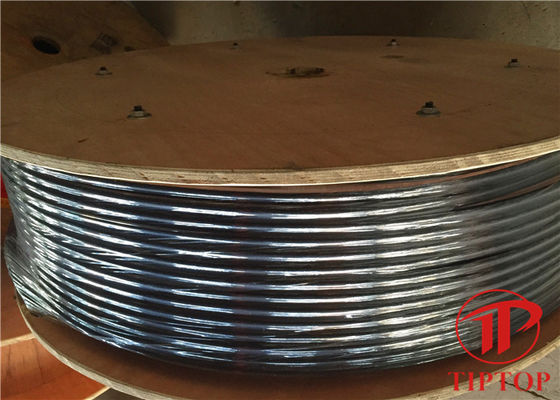

Penggunaan Marinir ASTM A269 Tp316L / 304L Baja paduan Stainless Steel seamless Welded Super Long Multi Core Tube untuk Marine dibundel bersama untuk operasi yang lebih mudah, yang digunakan dalam pembuatan kapal, pabrik lepas pantai dan lain-lain untuk mengangkut cairan, gas atau listrik.Ini dapat disediakan dari inti tipe 1 hingga 8 core.
Materi yang tersedia:
304, 316, 316L, 317L, 321, 347, 904L, 6 Mo, Monel 400, Nikel 200, Inconel 600, Inconel 625, Inconel 825, Hastelloy C22, Hastelloy C276, Dupleks, Dupleks Super, Tembaga, Cu-Ni 90 / 10
Bahan sarung: PVC, PVC TCR, PVC FR, TPU HFFR, PE HFFR, HDPE, MDPE, LDPE, XLPE
Fitur: Bright Annealed untuk tabung jadi, kebersihan tinggi dan presisi tinggi ukuran dan permukaan dalam & luar, sifat mekanik yang baik, kemampuan membungkuk dingin yang sangat baik, tahan suhu tinggi dan anti-oksidasi.Kami juga menyediakan layanan pemolesan dan pemotongan pipa
Tidak. |
Ukuran tabung |
Diameter keseluruhan |
Ketebalan selubung |
Berat Bundel |
Maks.Tekanan |
1 |
6 x 1,0 x 1 |
8 |
1.0 |
0,15 |
Bekerja: 180 Bar |
2 |
6 x 1,0 x 2 |
20 |
2.0 |
0,60 |
|
3 |
6 x 1,0 x 3 |
21 |
2.0 |
0,75 |
|
4 |
6 x 1,0 x 4 |
24 |
2.0 |
0,82 |
|
5 |
6 x 1,0 x 5 |
25 |
2.0 |
0,90 |
|
6 |
6 x 1,0 x 6 |
27 |
2.0 |
1.04 |
|
7 |
6 x 1,0 x 7 |
27 |
2.0 |
1.15 |
|
8 |
6 x 1,0 x 8 |
32 |
2.2 |
1.40 |
|
9 |
8 x 1,0 x 1 |
10 |
1.0 |
0,28 |
|
10 |
8 x 1,0 x 2 |
24 |
1.8 |
0,89 |
|
11 |
8 x 1,0 x 3 |
26 |
2.0 |
1.12 |
|
12 |
8 x 1,0 x 4 |
28 |
2.0 |
1.33 |
|
13 |
8 x 1,0 x 5 |
31 |
2.0 |
1.67 |
|
14 |
8 x 1,0 x 6 |
34 |
2.0 |
2,00 |
|
15 |
8 x 1,0 x 7 |
34 |
2.0 |
2.15 |
|
16 |
10 x 1,0 x 1 |
40 |
2.2 |
2.6. |
|
17 |
10 x 1,0 x 2 |
13 |
1.0 |
0,34 |
|
18 |
10 x 1,0 x 3 |
28 |
1.8 |
1.18 |
|
19 |
10 x 1,0 x 4 |
31 |
2.0 |
1,60 |
|
20 |
10 x 1,0 x 5 |
34 |
2.0 |
1.97 |
|
21 |
10 x 1,0 x 6 |
37 |
2.0 |
2.20 |
|
22 |
10 x 1,0 x 7 |
40 |
2.0 |
2.40 |
|
23 |
10 x 1,0 x 8 |
40 |
2.0 |
2.52 |
|
24 |
10 x 1,0 x 9 |
48 |
2.5 |
3.20 |
|
25 |
12 x 1,0 x 1 |
14 |
1.0 |
0,41 |
|
26 |
12 x 1,0 x 2 |
34 |
2.0 |
1.35 |
|
27 |
12 x 1,0 x 3 |
36 |
2.0 |
1.96 |
|
28 |
12 x 1,0 x 4 |
39 |
2.0 |
2.37 |
|
29 |
12 x 1,0 x 5 |
43 |
2.0 |
2.70 |
|
30 |
12 x 1,0 x 6 |
47 |
2.0 |
3,00 |
|
31 |
12 x 1,0 x 7 |
47 |
2.0 |
3.14 |
|
32 |
12 x 1,0 x 8 |
55 |
2.5 |
3,90 |
